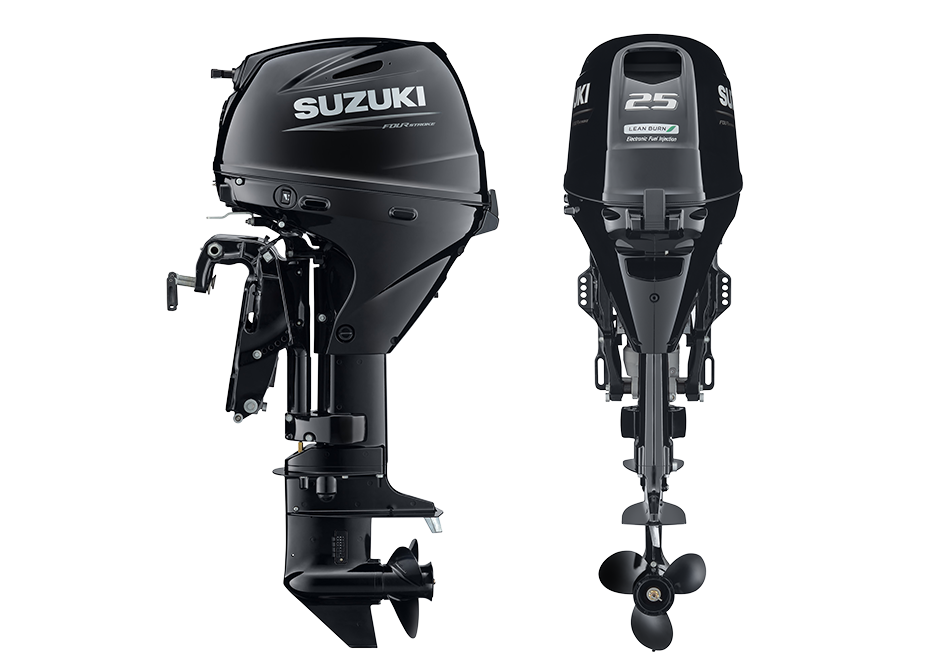

Lightweight In-line three-cylinder outboards

Suzuki engineers have packed the new in-line three-cylinder DF25A/30A range with some of Suzuki’s finest technologies giving them class-leading advantages that put them ahead of the rest. Engineering lightweight outboards has long been a Suzuki hallmark. In keeping with that, the DF25A/30A are the lightest outboards in the 25PS / 30PS class. Both are first in class to feature friction reducing roller rocker arms and each utilises offset crankshafts resulting in smoother operation and greater mechanical efficiency.

Fuel is supplied with Suzuki’s Lean Burn Control system and a Battery-Less Fuel injection system that gives these outboards remarkable improvements fuel efficiency while maintaining excellent power and performance. A convenient LED monitoring system provides engine operating status at a glance.


Discover More
Recommended Transom Height (mm)L: 508
Weight (Kg*)L: 73
Engine TypeOHC
Piston Displacement (cm³)490
Maximum Output (kw)18.4
Recommended FuelRON91 / AKI87
Alternator12V 14A
Gear Ratio2.09 : 1
ExhaustThrough Prop Hub Exhaust
Starting SystemElectric / Manual
CylindersIn-line 3
Fuel Delivery SystemBattery-less Electronic Fuel Injection
Bore x Stroke (mm)60.4 x 57
Full Throttle Operating Range (rpm)5,000 - 6,000
Oil Pan Capacity (L)1.5
Fuel Tank Capacity (L)Separate (optional) 25
Trim MethodGas Assisted Tilt
Gear ShiftF-N-R
Propeller Selection (Pitch)-
